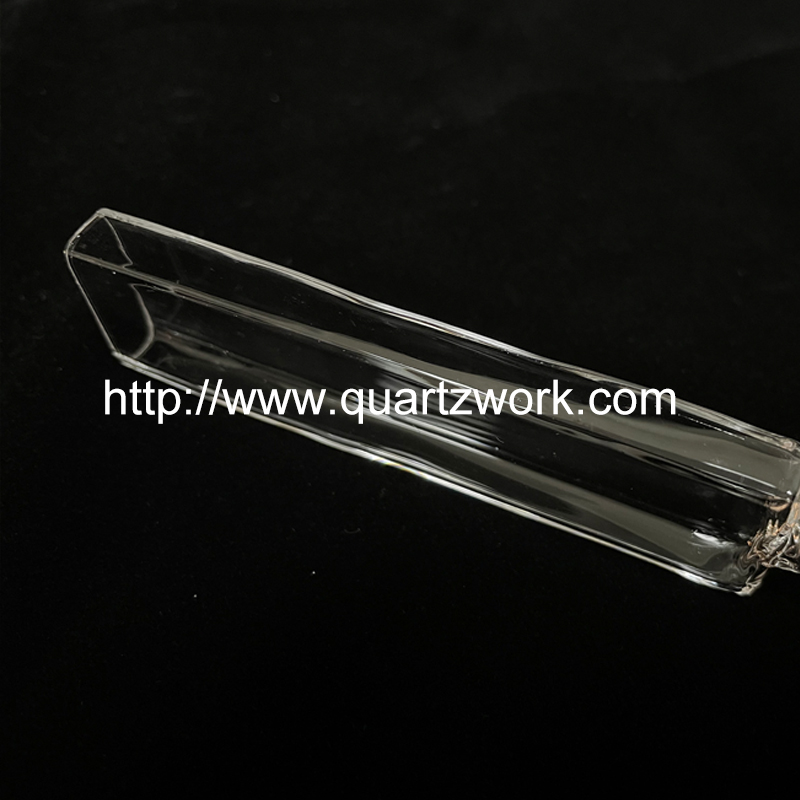

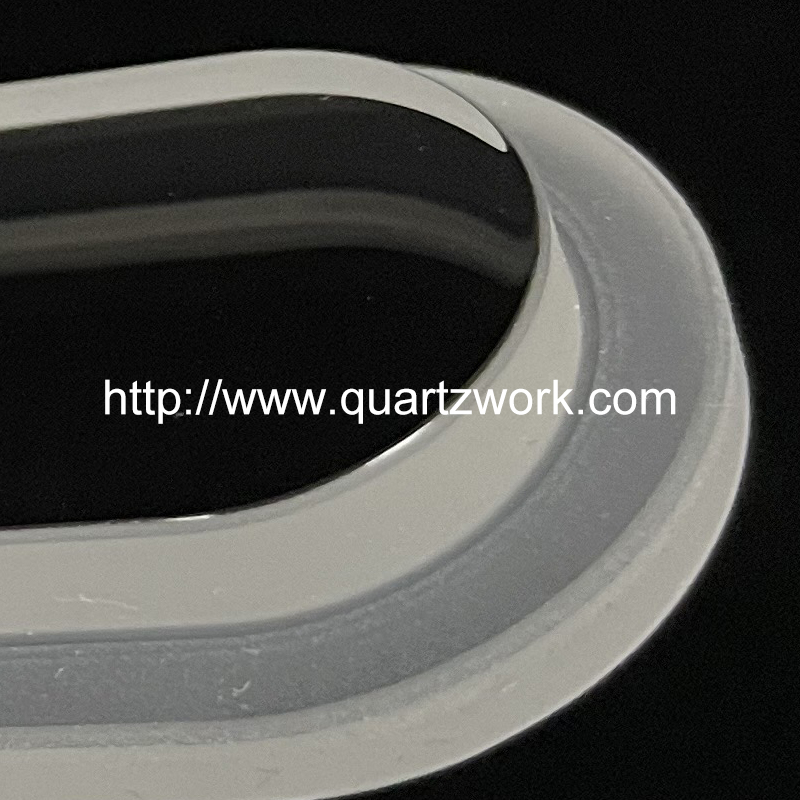

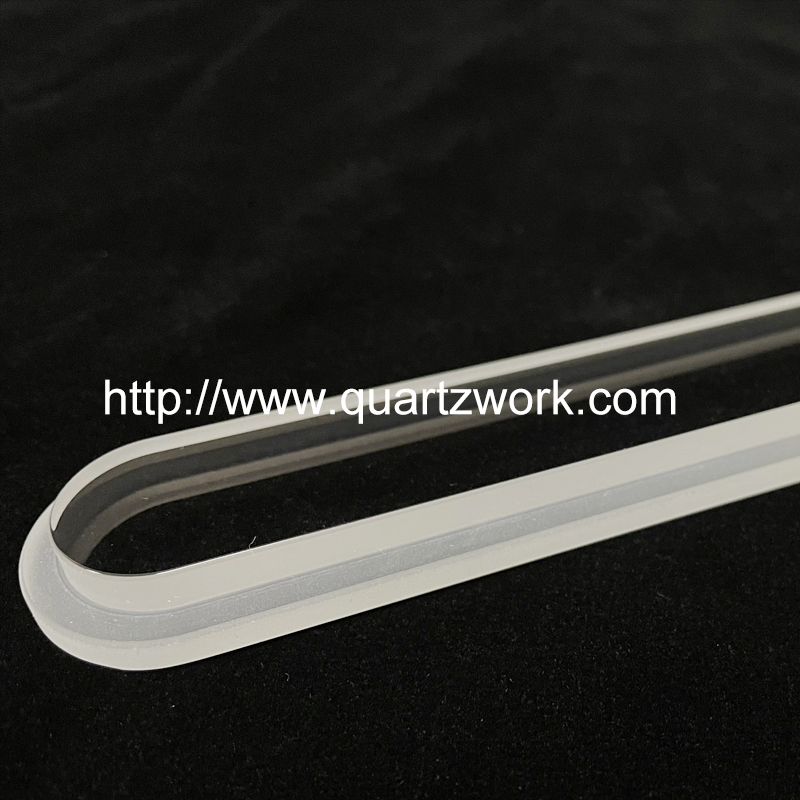

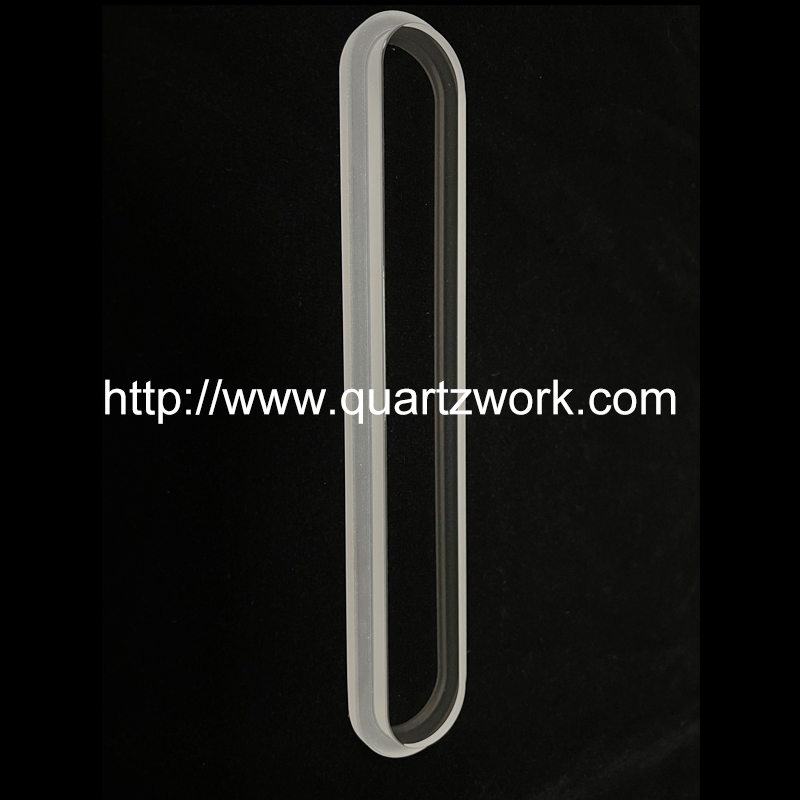

石英長臺階片 拋光片 石英擺片 石英基片
光學窗口參數 Parameter  | 標準指標 Standard Grade  | 中等精度指標 Precision Grade  | 高精度指標 Ultra-precision Grade  |
尺寸公差/Dimensional Tolerance  | +/-0.2  | +/-0.1  | +/-0.05  |
通光孔徑/Clear Aperture  | >80% to >90%  | >80% to >90%  | >80% to >90%  |
表面質量/Surface Quality  | 80/50  | 60/40  | 40/20  |
平行度/Parallelism  | 3 arc min  | 1 arc min  | 30 arc seconds  |
波長面形/Wavefront Distortion  | 5λper 25mm  | 1λper 25mm  | λ/4  |
保護性倒角/Protective Bevel  | <0.25x45 deg  | <0.25x45 deg  | <0.25x45 deg  |
材料/Material  | 紫外石英,熔融石英,紅外石英, 高硼硅玻璃,藍寶石玻璃,K9玻璃,B270等。 Synthetic fused Silica, Fused quartz, IR quartz, Borosilicate glass,Sapphire crystal, K9, B270, etc.  | ||
形狀/Shape  | 圓形窗口、方形窗口、三角形窗口、橢圓窗口、等其他異形窗口 Circular, square, triangular, oval, and other shaped windows  | ||
尺寸/Dimension  | Large window, Ultra-thin window, Regular size window  | ||
精度/Precision  | 普通耐火窗口、高精密光學窗口 Ordinary refractory window, High precision optical window  | ||
鍍膜/Coating  | 紫外高反膜,增透膜,鍍金,鍍鋁,鍍銀系列石英玻璃片,UV石英濾光片,弧形反射片等。 High anti-UV Film, antireflective film, gold, aluminum, silver series quartz glass, quartz UV filter, curved reflector and so on.  | ||
